------------------------------- Optics Primer - Proof of Concept

--------------------------------------------------------- By Bill Claff

This project had been on my mind for several years and I was unsure whether a simply ray tracing program would be sufficient.

To start I entered data for a 50mm Nikon lens from US patent 8,934,182 B2 Example 2.

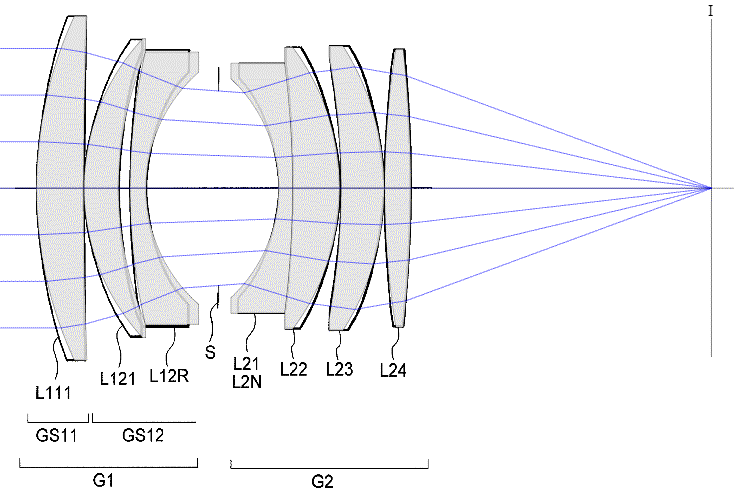

Here are the elements as overlaid on the figure from that patent:

The line marked with an "I' indicates the image plane; the object plane, not shown, is labeled with an 'O'.

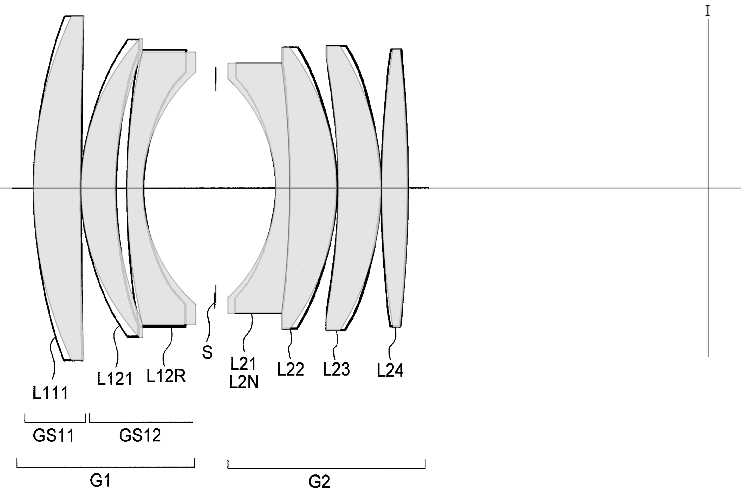

The black figure in the background is an image from the patent and the gray shapes are the lens elements as drawn from the specification.
(Aspherical elements, when present, are shown as a pale blue rather than gray.)
Not perfect but I have since learned that the figures shown in the patents are not entirely accurate but only serve as a guide to the reviewer.

Let's feed rays on the optical axis from infinitely far away into the lens from the object side.
Since by convention the object side is always on the left and the image side is always on the right these rays will appear as parallel lines coming in from the left.
Here's what we get:

The rays focus to a point at the image plane as specified in the patent data; great.

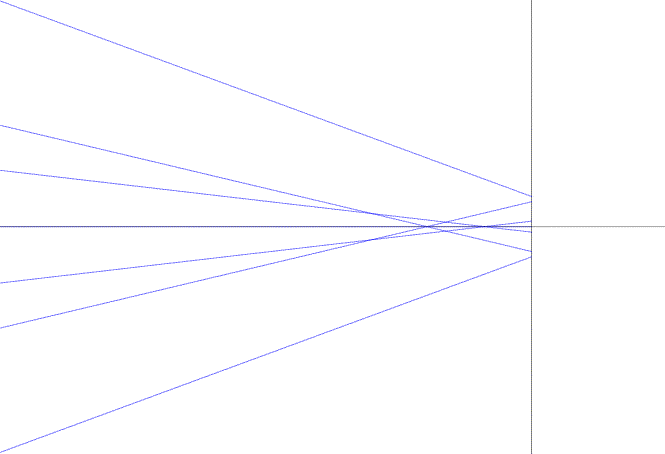

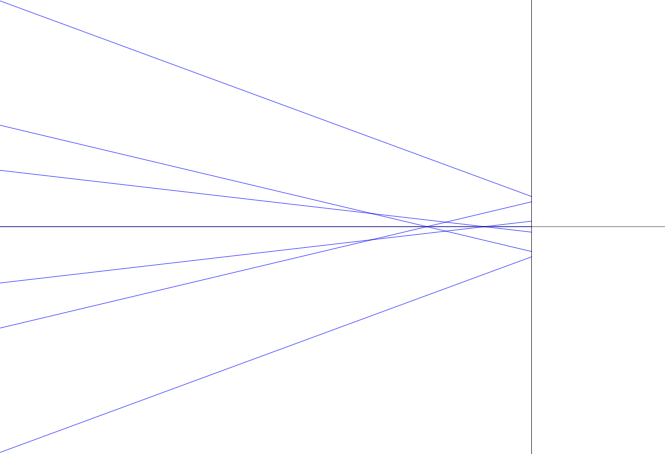

But, let's look very closely at the rays striking the image plane:

These imperfections come from spherical aberration and are not an error in the ray tracing.
So it appears that the ray tracing approach works.
